PAL-GATE-ST-4FT-BLK-KIT

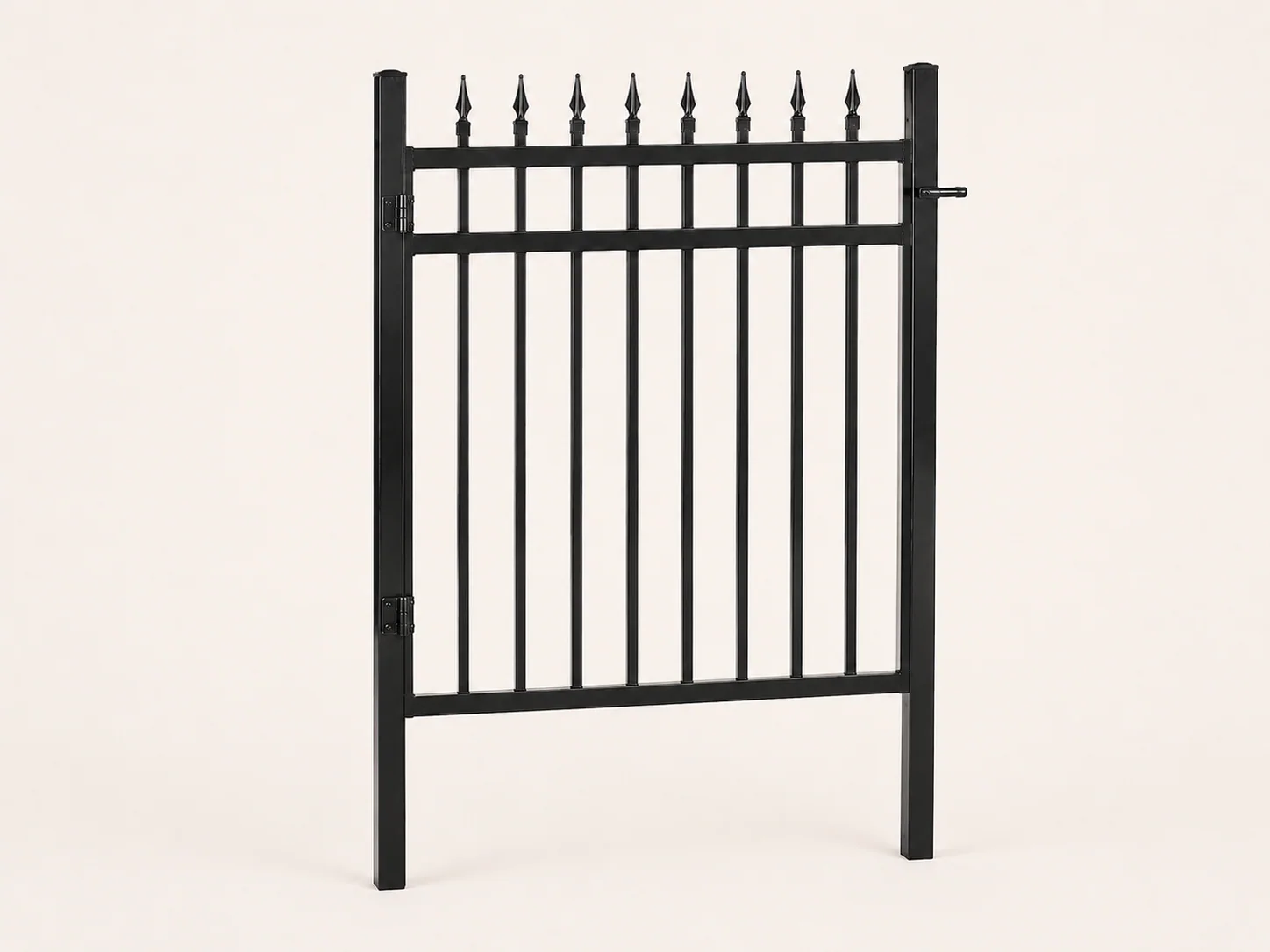

4 ft Spear-Top Steel Gate Kit
Matching single-leaf kit. Confirm opening width, contents and fitment at quotation.
View product detailsLIVE SATELLITE ESTIMATOR
See your fence line. Plan the right panel count.
Search an Ontario address and trace each straight run on the satellite map. Choose a panel to see its SKU and estimated quantity, then review the complete product below.
01Find the site
02Trace the run
03Review the quote
01 / MEASURE THE RUN
Your site from above.
Click to place points along the fence line.
Loading the live satellite map…
You can still estimate from a measured length.
ft · entering a length clears the map trace
03 / YOUR SELECTED SKU
The panel behind your estimate.
PAL-SP-PNL-8X4-BLK

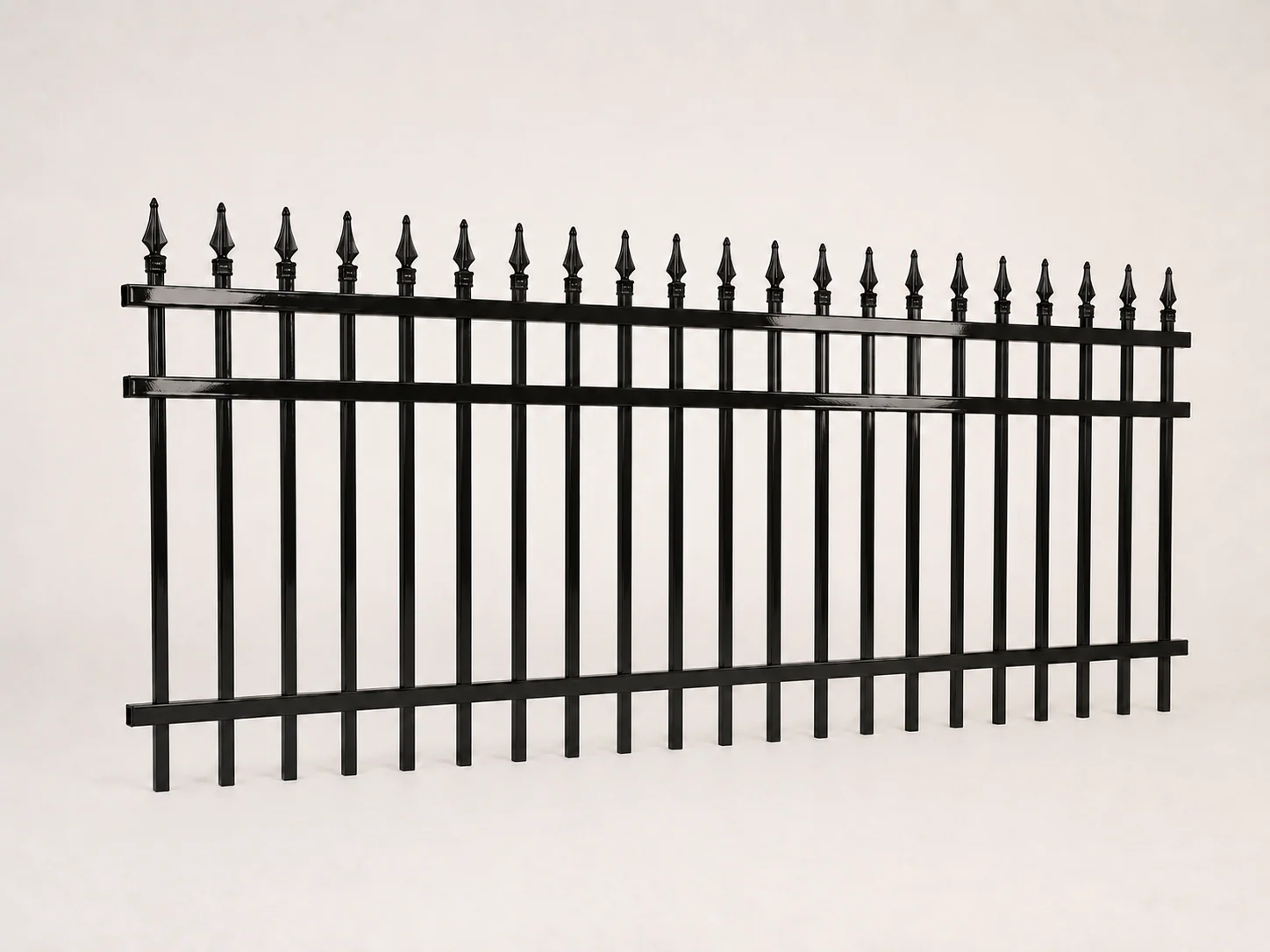

8 ft × 4 ft Spear-Top Steel Fence Panel
A nominal eight-foot-wide galvanized steel fence panel with spear-point finials and a gloss-black powder-coated finish. The four-foot height maintains open sightlines while creating a defined perimeter for residential and light-duty commercial settings.
- Nominal size
- 8 ft W × 4 ft H
- Finish
- Gloss black
- Construction
- Galvanized steel
- Installation
- Available by quote
Build your project quote
Your measured panel run
Start with the estimated panel count, then choose any components you would like Palisaro to review with your request.
8 ft × 4 ft Spear-Top Steel Fence Panel
PAL-SP-PNL-8X4-BLK
Trace or enter a run to calculate the panel quantity.
Add pedestrian gate kits?
A matching kit for the selected panel. Choose a planning ratio to suggest gate quantities.
The ratio is a planning shortcut, not a measured gate layout. Gate openings may change the final panel count. We will confirm locations, dimensions, kit contents and availability.
Optional posts & hardware
See each component before adding it to your quote request. These components are quoted per project; availability, fitment and quantities are confirmed before any order. A gate kit may already include some posts or hardware, so avoid double-counting until the kit contents are confirmed.
Swipe across to explore the components →
PAL-POST-LINE-2X2

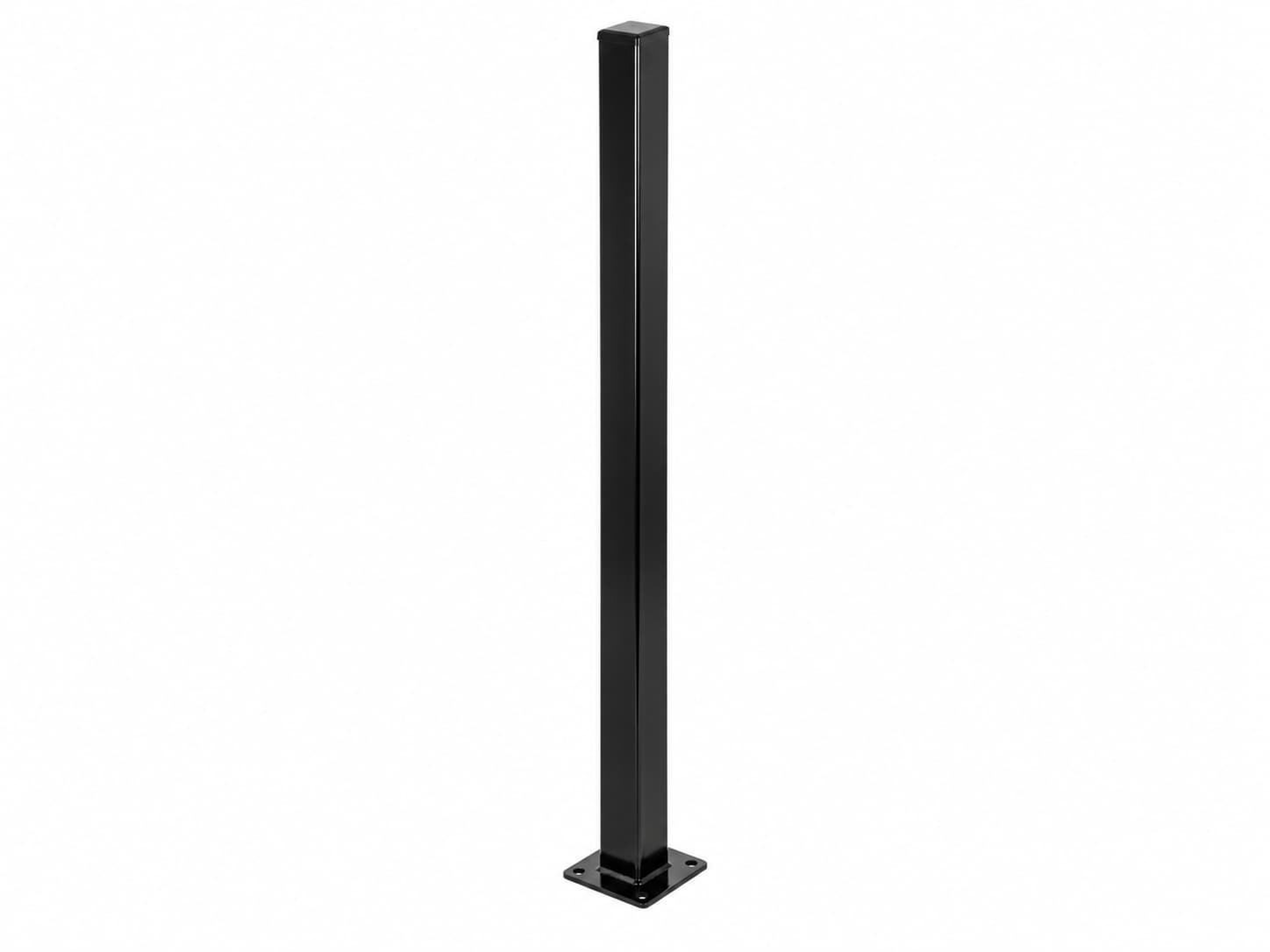

2 in × 2 in Line Post
Supports adjoining panels along a straight run.
View product details
PAL-CAP-STD-2X2

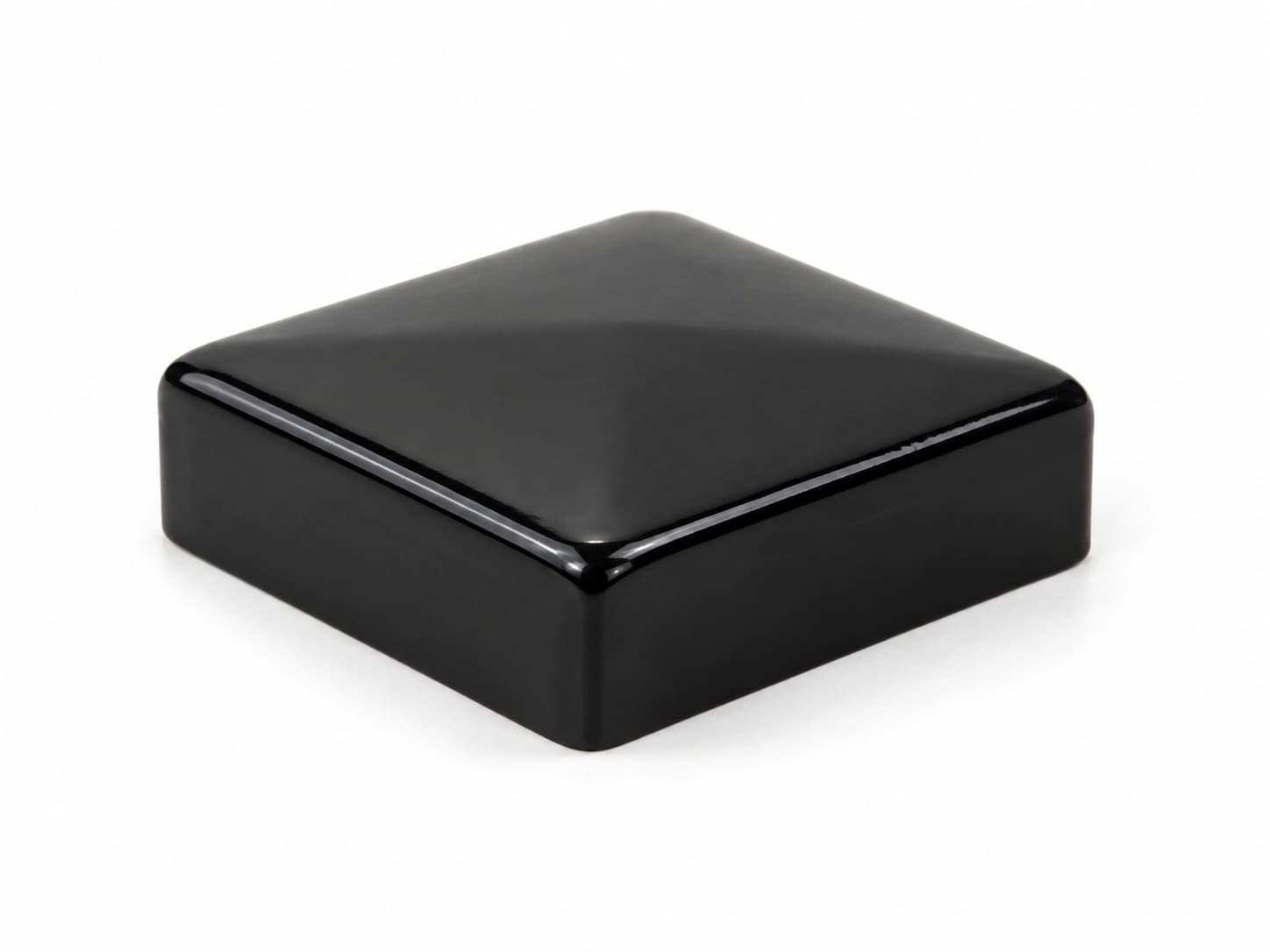

Standard Post Cap
Finishes the open top of a compatible square post.
View product details
PAL-FAST-INSTALL-PACK

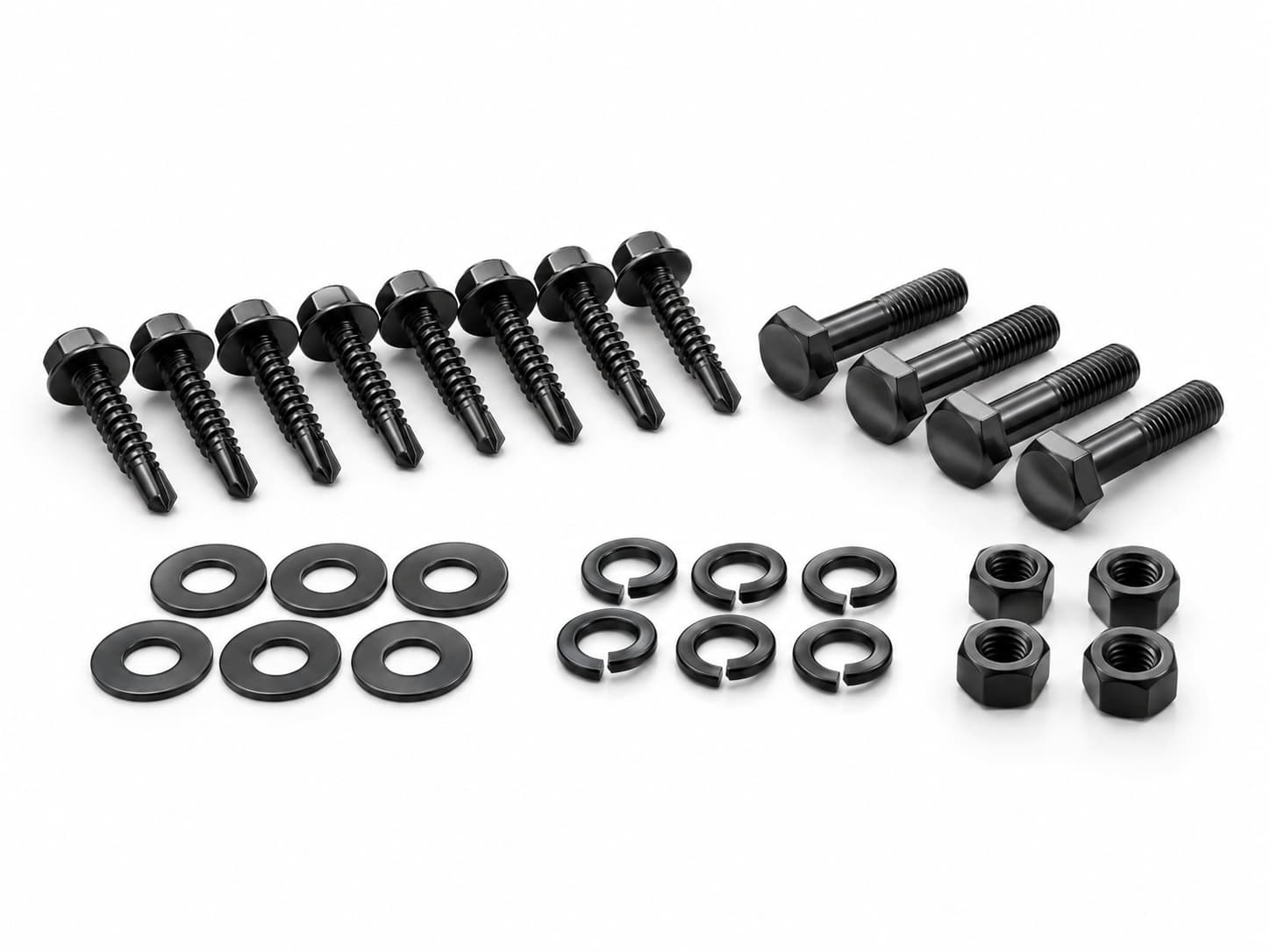

Installation Fastener Pack
Exterior fixings for a confirmed panel and post layout.
View product detailsReview your project details before sending. Final quantities, component compatibility, availability and pricing are confirmed by Palisaro. No payment is taken.
Product overview
The Palisaro 8 ft × 4 ft Spear-Top Steel Fence Panel combines an open ornamental profile with pointed finials along the upper edge. Its four-foot nominal height is suited to projects where boundary definition and visibility are more important than creating a tall visual barrier.
The tubular steel panel is galvanized and finished in gloss-black powder coat for outdoor use. Pair it with compatible Palisaro posts, brackets and caps to complete a continuous fence line. Supply-only ordering and project-based installation are available.
Key features
- Nominal 8 ft width and 4 ft height
- Spear-point upper profile
- Open-picket design preserves visibility
- Galvanized steel construction
- Gloss-black powder-coated finish
- Available for supply-only orders or installation quotes
Technical specifications
Review the supplied dimensions before ordering. Final fitment and site quantities are confirmed at quotation.
- Nominal width
- 8 ft (96 in)
- Source-listed manufactured width
- 92.5 in (approximately 2350 mm)
- Nominal height
- 4 ft (48 in)
- Horizontal rails
- Three visible rails
- Panel material
- Galvanized steel
- Finish
- Gloss-black powder coat
What is included
- One 8 ft × 4 ft nominal spear-top fence panel
Plan the complete system
- Intended for Palisaro square steel fence posts of the confirmed matching size.
- Use brackets and fasteners approved for this panel and post combination.
- Matching-profile pedestrian gate option: 4 ft Spear-Top Steel Gate Kit. Confirm the opening, posts and mechanical fitment before ordering.
Installation notes
- Lay out the fence using the actual 92.5 in panel width, bracket allowance and post dimensions—not the nominal eight-foot name alone.
- Confirm whether the panel is rackable before using it on a slope. Fixed welded panels must generally be stepped.
- Post depth and concrete requirements depend on fence height, soil and local conditions.
Satellite measurements are planning estimates. Confirm dimensions, property lines, utilities, corners, gates, hardware and local requirements on site before ordering. No payment is taken when requesting a quote.
