PAL-GATE-ST-4FT-BLK-KITGates
4 ft Spear-Top Steel Gate Kit

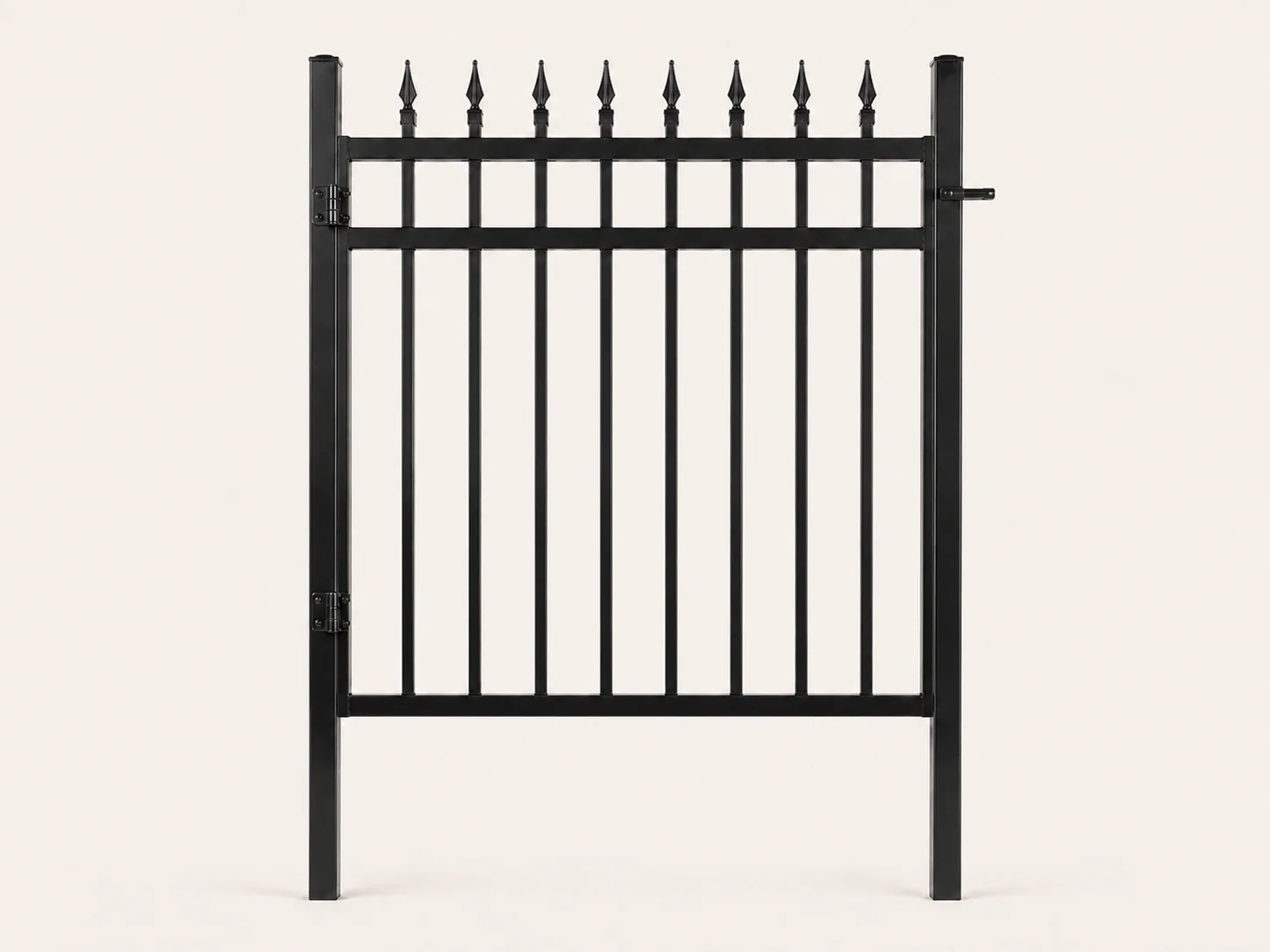

A compact 4 ft spear-top steel pedestrian gate kit for residential walkways, side yards and garden entrances. The gloss-black gate uses eight evenly spaced square pickets with matching spear finials and is shown with coordinating posts, hinges and a manual slide latch.
Select height
Request a Quote
Include this SKU and your preferred quantity in a project request. Palisaro confirms specification, availability and timing before any order is agreed.
Project quotation
Request a Quote
Include this SKU in your project request. Palisaro will confirm the specification, availability, pricing and timing before any order is agreed.
A request is not an order. No payment is taken.
- Nominal size
- 4 ft W × 4 ft H
- Finish
- Gloss black
- Configuration
- Single swing
- Availability
- Stock to be confirmed
Product overview
Designed to complement Palisaro spear-top fencing, this single-swing pedestrian gate combines a clean square-tube frame with eight evenly spaced pickets and eight aligned spear finials. The gate leaf measures 1119 mm wide by 1200 mm high, while the complete post-to-post kit width shown is 1219 mm. Its gloss-black powder-coated finish gives the gate a consistent appearance alongside matching black metal fencing.
The gate is intended for pedestrian access at residential walkways, side yards and garden entrances. Supply-only and installation enquiries can be submitted through Palisaro. Pricing, availability and lead time are confirmed against each project request.
Key features
- Nominal 4 ft pedestrian gate height
- Exactly eight square vertical pickets
- Eight aligned faceted spear finials
- Nine equal clear openings across the gate leaf
- Gloss-black powder-coated steel construction
- Square-tube gate frame, rails, pickets and posts
- Compact hinge hardware and a manual slide latch shown
- Designed to visually coordinate with spear-top metal fencing
- Supply-only or installation enquiry options available through Palisaro
Technical specifications
Only supplied public values are shown. Unknown weight, coating, hardware and rackability fields remain omitted until confirmed.
- Nominal height class
- 4 ft
- Gate leaf width
- 1119 mm / 44.1 in
- Gate leaf height
- 1200 mm / 47.2 in
- Complete kit width
- 1219 mm / 48.0 in
- Post overall length
- 1800 mm / 70.9 in
- Gate frame and rail tube
- 40 × 40 × 1.0 mm / 1.57 × 1.57 × 0.039 in
- Vertical picket tube
- 20 × 20 × 0.8 mm / 0.79 × 0.79 × 0.031 in
- Post tube
- 50 × 50 × 1.2 mm / 1.97 × 1.97 × 0.047 in
- Internal pickets
- 8
- Spear finials
- 8
- Clear openings
- 9
- Clear opening width
- 97.67 mm / 3.85 in
- Gate configuration
- Single-swing pedestrian gate
- Material
- Steel
- Colour
- Black
- Finish shown
- Gloss black powder coat
- Hinge side shown
- Left
- Latch side shown
- Right
- Latch type shown
- Manual slide latch
Compatibility and applications
- Designed to visually coordinate with Palisaro spear-top steel fence panels.
- Final mechanical compatibility, supplied hardware and receiving-post requirements must be confirmed before ordering or installation.
Recommended applications
- Residential walkways
- Side-yard pedestrian access
- Garden entrances
- Openings within matching spear-top fence lines
Installation and delivery
- Professional installation is recommended.
- Final post setting, footing, gate clearance, swing direction and hardware selection must suit the site and applicable local requirements.
- Do not calculate a guaranteed finished clear opening from the 1219 mm kit width without confirming hinge, latch and installation tolerances.
- This product is not confirmed as a pool-safety, self-closing, self-latching or child-safety gate.
Available as supply only or with professional installation. Installation pricing is project-specific and depends on total footage, access, terrain, post-setting conditions, gate requirements and location.
Pickup and delivery options depend on order size and destination. Enter the project location on the quote request for delivery availability and pricing.
Nominal product names are used for easy selection. Review the actual manufactured dimensions before planning post locations, openings or material quantities.
Site conditions and municipal requirements vary. Confirm property lines, utility locates, permits and applicable fence or pool-enclosure rules before installation.
Frequently asked questions
Need a project-specific answer? Include the site location, approximate footage and gate count in the quote request.
Is this gate kit currently in stock?
Stock is confirmed per request rather than shown on the page. Use Check availability and Palisaro will confirm current stock, lead time and pricing for the quantity you need.
What are the gate dimensions?
The gate leaf measures 1119 mm wide by 1200 mm high. The complete post-to-post kit width shown is 1219 mm.
How many pickets does the gate have?
The gate leaf has eight square pickets with eight aligned spear finials and nine equal clear openings.
Is installation available?
Installation enquiries can be submitted through Palisaro. Availability and pricing depend on the project location and scope.
Is the gate suitable for a pool enclosure?
No pool-safety certification has been confirmed for this product. Do not use or market it as a pool-safety gate unless Palisaro obtains the required product and local-code confirmation.
