PAL-GK-ST-6FTGates
6 ft Spear-Top Gate Kit — Black
This single-leaf gate combines a taller spear-top profile with vertical steel pickets and three horizontal rails. Its gloss-black finish coordinates with black spear-top fencing. The gate leaf measures 1119 mm wide by 1800 mm high, including the spear tips.
Select height
Request a Quote
Include this SKU and your preferred quantity in a project request. Palisaro confirms specification, availability and timing before any order is agreed.
Project quotation
Request a Quote
Include this SKU in your project request. Palisaro will confirm the specification, availability, pricing and timing before any order is agreed.
A request is not an order. No payment is taken.
- Nominal size
- 6 ft nominal height
- Gate leaf
- 1119 mm W × 1800 mm H
- Style
- Spear top
- Finish
- Gloss black
Product overview
This single-leaf gate combines a taller spear-top profile with vertical steel pickets and three horizontal rails. Its gloss-black finish coordinates with black spear-top fencing. The gate leaf measures 1119 mm wide by 1800 mm high, including the spear tips.
The kit is supplied for pedestrian access within a compatible six-foot fence line. Confirm the opening, the receiving support and the final hardware schedule with Palisaro before ordering.
Key features
- 6 ft nominal gate height
- Single-leaf pedestrian gate
- Spear-point upper profile with 110 mm tips above the upper rail
- Three horizontal rails; two near the top and one at the bottom
- Square-tube steel frame, pickets and support posts
- Gloss-black finish
- Supply-only and installation enquiries available
Technical specifications
Only supplied public values are shown. Unknown weight, coating, hardware and rackability fields remain omitted until confirmed.
- Nominal height class
- 6 ft
- Gate-leaf height
- 1800 mm (approximately 70.9 in), including spear tips
- Gate-leaf width
- 1119 mm (approximately 44.1 in)
- Picket clear gap shown in drawing
- Approximately 97.5 mm
- Spear-tip height above upper rail
- 110 mm
- Gate frame / horizontal rail section
- 40 × 40 mm
- Vertical picket section
- 20 × 20 mm
- Vertical picket wall thickness
- 0.8 mm
- Support post section
- 50 × 50 mm
- Support post wall thickness
- 1.2 mm
- Rail arrangement
- Three horizontal rails; two near the top and one at the bottom
- Clear spacing between upper rail pair
- 105 mm
- Gate configuration
- Single-leaf pedestrian gate
- Material
- Steel
- Finish
- Gloss black (requested product finish)
Not included unless selected
- Fasteners are not confirmed as included
- Concrete or anchoring materials
- Base plates
- Self-closing hardware, keyed locking or automatic operation
- Delivery
- Installation labour
Compatibility and applications
- The gloss-black finish is intended to coordinate visually with compatible 6-foot spear-top fencing.

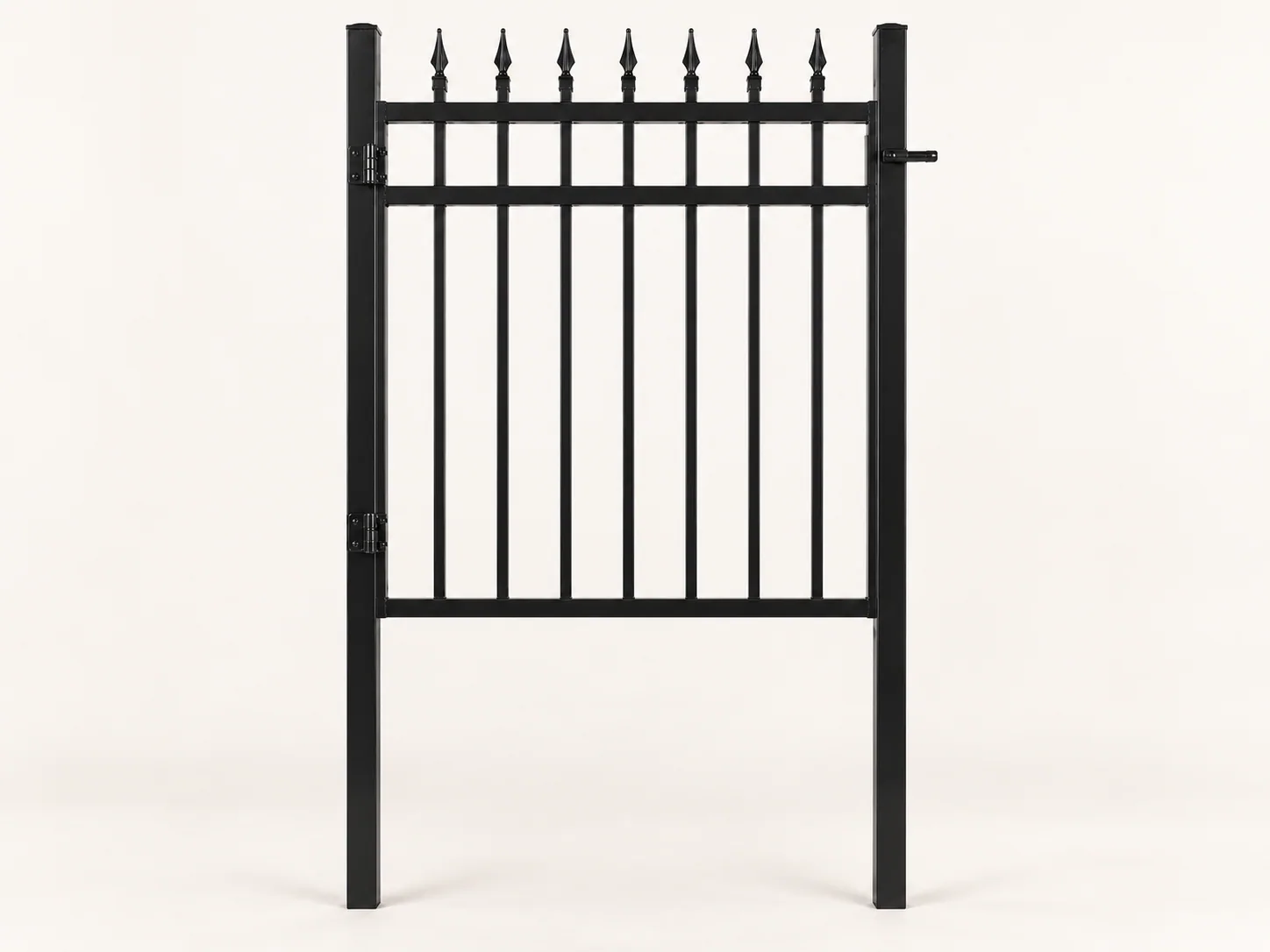

- The supplied gallery depicts one gate leaf, two support posts, hinges and a manual slide latch. Confirm the final hardware models, quantities and complete parts list before ordering.
Recommended applications
- Pedestrian openings within compatible 6-foot spear-top fence lines
- Access points where the spear-top profile is intended to continue through the gate
Installation and delivery
- The 1119 mm leaf width excludes the support posts. It is not a verified clear opening and not a verified overall installed width; confirm both against the site before excavation.
- The supplied 6 ft drawing crops the support-post length. Confirm it with Palisaro before ordering; it has deliberately not been carried over from the 5 ft sheet.
- Do not specify this gate as pool compliant. The hardware has not been verified as self-closing or self-latching.
Available as supply only or with professional installation. Installation pricing is project-specific and depends on total footage, access, terrain, post-setting conditions, gate requirements and location.
Pickup and delivery options depend on order size and destination. Enter the project location on the quote request for delivery availability and pricing.
Nominal product names are used for easy selection. Review the actual manufactured dimensions before planning post locations, openings or material quantities.
Site conditions and municipal requirements vary. Confirm property lines, utility locates, permits and applicable fence or pool-enclosure rules before installation.
Frequently asked questions
Need a project-specific answer? Include the site location, approximate footage and gate count in the quote request.
What is the actual gate-leaf size?
The supplier drawing shows a leaf 1119 mm wide by 1800 mm high, including the spear tips. The 6-foot name is a nominal height class.
Is this a driveway gate?
No. This is a single-leaf pedestrian gate kit. The nominal figure describes its height, not an opening width, and no double driveway gate is offered in this range.
What hardware comes with the kit?
The supplied gallery shows two support posts, hinges and a manual slide latch, but the exact models and quantities have not yet been confirmed by the supplier. Confirm the hardware schedule with Palisaro before ordering.
What does it cost?
Request a quote and Palisaro will confirm the price with the current hardware schedule.
Can I buy the material without installation?
Yes. Palisaro supports supply-only orders as well as complete installation quotes.
How do I estimate how many panels and posts I need?
Provide the total fence-line measurements, corners, ends and gate locations. Panel count is based on the actual manufactured width plus posts and mounting allowances, not nominal panel names alone.
Is delivery available?
Delivery availability and cost depend on destination, order size and unloading requirements. Enter the project location or request a delivery quote.
Can I request a different colour?
Gloss black is the standard finish. Other colour or refinishing options, when available, require a custom quote and may add lead time.
Are these products suitable for a pool enclosure?
No blanket compliance claim is made. Pool-enclosure rules, allowable spacing, fence height and gate hardware vary by municipality. The final system must be reviewed for the project location.
Do I need a permit?
Permit and fence requirements vary by municipality, property type, height and use. The property owner or project contractor is responsible for confirming applicable requirements before installation.
