PAL-FT-GATE-4X5-BLKGates
5 ft Flat-Top Gate Kit — Black
This single-leaf gate pairs a straight upper rail with vertical steel pickets and three horizontal rails. Its gloss-black finish coordinates with black flat-top fencing. The gate leaf measures 1123 mm wide by 1500 mm high.
Select height
Request a Quote
Include this SKU and your preferred quantity in a project request. Palisaro confirms specification, availability and timing before any order is agreed.
Project quotation
Request a Quote
Include this SKU in your project request. Palisaro will confirm the specification, availability, pricing and timing before any order is agreed.
A request is not an order. No payment is taken.
- Nominal size
- 5 ft nominal height
- Gate leaf
- 1123 mm W × 1500 mm H
- Style
- Flat top
- Finish
- Gloss black
Product overview
This single-leaf gate pairs a straight upper rail with vertical steel pickets and three horizontal rails. Its gloss-black finish coordinates with black flat-top fencing. The gate leaf measures 1123 mm wide by 1500 mm high.

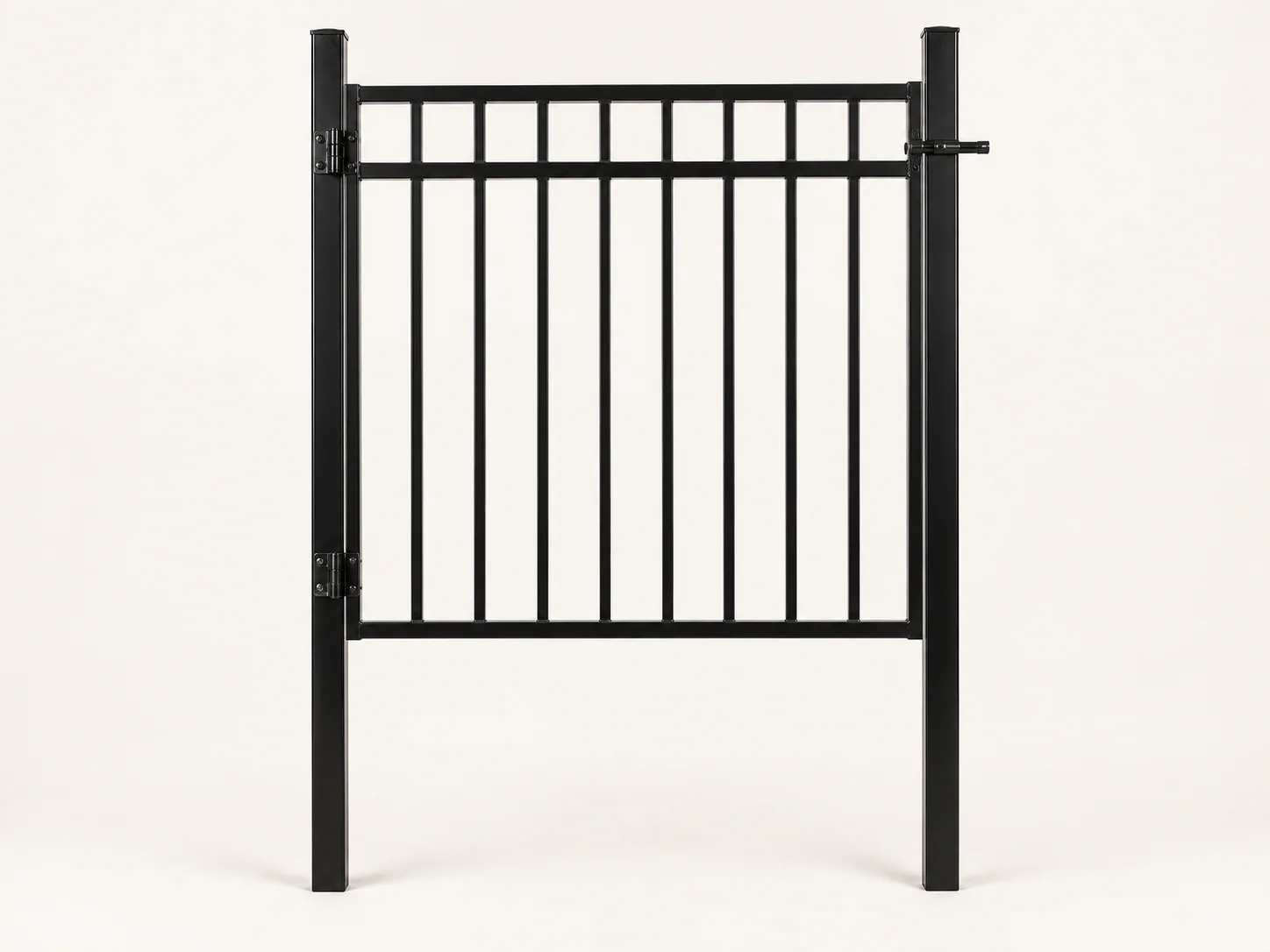

The supplied gallery depicts one gate leaf, two support posts, hinges and a manual slide latch. Exact hardware models and quantities require supplier confirmation, as do the clear opening and overall installed width.
Key features
- 5 ft nominal gate height
- Gate leaf measures 1123 mm wide by 1500 mm high
- Single-leaf pedestrian gate configuration
- Continuous flat upper rail with no spear finials
- Three horizontal rails; two near the top and one at the bottom
- Square steel frame, pickets and support posts
- Gloss-black requested finish
Technical specifications
Only supplied public values are shown. Unknown weight, coating, hardware and rackability fields remain omitted until confirmed.
- Nominal height
- 5 ft
- Gate-leaf height
- 1500 mm
- Gate-leaf width
- 1123 mm
- Drawing picket gap
- Approximately 98.5 mm
- Support-post length
- 2440 mm, full supplied length; not exposed installed height
- Gate frame / horizontal rail section
- 40 × 40 mm
- Vertical picket section
- 20 × 20 mm
- Vertical picket wall thickness
- 0.8 mm
- Support post section
- 50 × 50 mm
- Support post wall thickness
- 1.2 mm
- Rail arrangement
- Three horizontal rails; two near the top and one at the bottom
- Clear spacing between upper rail pair
- 105 mm
- Gate configuration
- Single-leaf pedestrian gate
- Material
- Steel
- Finish
- Gloss black (requested product finish)
Not included unless selected
- Fasteners are not confirmed as included
- Concrete or anchoring materials
- Base plates
- Self-closing hardware, keyed locking or automatic operation
- Delivery
- Installation labour
Compatibility and applications
- The gloss-black finish is intended to coordinate visually with compatible 5-foot flat-top fencing.
- Confirm the final hardware schedule, post arrangement and mechanical compatibility before ordering or installation.
Recommended applications
- Pedestrian openings within compatible 5-foot fence lines
- Access points where a continuous flat upper profile is preferred
Installation and delivery
- The gate-leaf width excludes the support posts and is not a verified clear opening or overall installed width. Confirm both before laying out the opening.
- The listed support-post length is the full supplied length, not the exposed height after installation.
- Do not specify this gate as pool compliant. Self-closing and self-latching hardware have not been verified.
Available as supply only or with professional installation. Installation pricing is project-specific and depends on total footage, access, terrain, post-setting conditions, gate requirements and location.
Pickup and delivery options depend on order size and destination. Enter the project location on the quote request for delivery availability and pricing.
Nominal product names are used for easy selection. Review the actual manufactured dimensions before planning post locations, openings or material quantities.
Site conditions and municipal requirements vary. Confirm property lines, utility locates, permits and applicable fence or pool-enclosure rules before installation.
Frequently asked questions
Need a project-specific answer? Include the site location, approximate footage and gate count in the quote request.
What is the actual gate-leaf size?
The supplier drawing shows a leaf 1123 mm wide by 1500 mm high. The 5-foot name is a nominal height class, not a width.
What comes with the gate kit?
The supplied gallery depicts one gate leaf, two support posts, hinges and a manual slide latch. Confirm the exact hardware models, quantities and complete included-parts list before ordering.
Is the listed width a clear opening?
No. The gate-leaf width excludes the separate support posts and is not a verified clear opening or overall installed width.
Can I buy the material without installation?
Yes. Palisaro supports supply-only orders as well as complete installation quotes.
How do I estimate how many panels and posts I need?
Provide the total fence-line measurements, corners, ends and gate locations. Panel count is based on the actual manufactured width plus posts and mounting allowances, not nominal panel names alone.
Is delivery available?
Delivery availability and cost depend on destination, order size and unloading requirements. Enter the project location or request a delivery quote.
Can I request a different colour?
Gloss black is the standard finish. Other colour or refinishing options, when available, require a custom quote and may add lead time.
Are these products suitable for a pool enclosure?
No blanket compliance claim is made. Pool-enclosure rules, allowable spacing, fence height and gate hardware vary by municipality. The final system must be reviewed for the project location.
Do I need a permit?
Permit and fence requirements vary by municipality, property type, height and use. The property owner or project contractor is responsible for confirming applicable requirements before installation.
