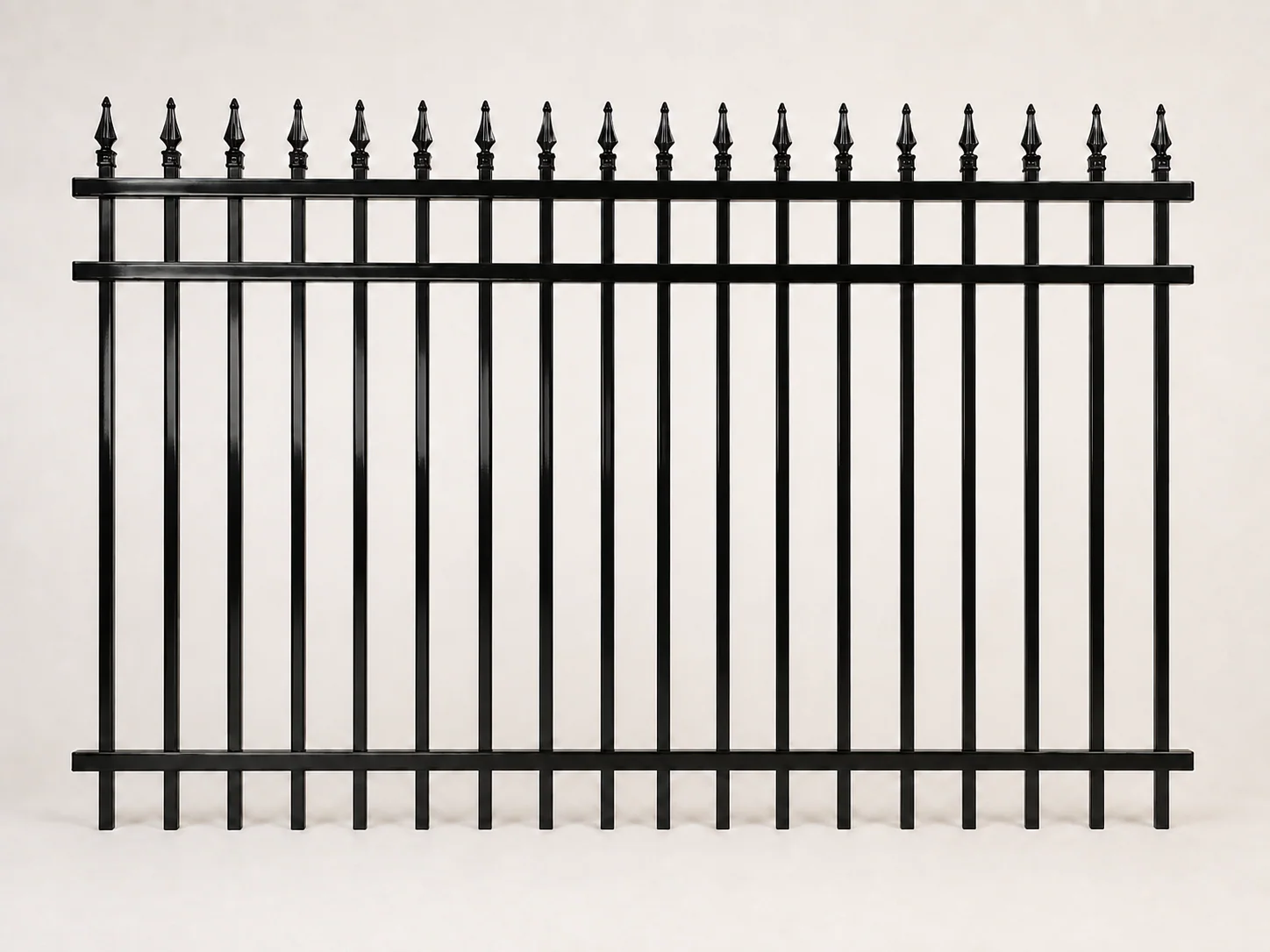

8 ft × 5 ft Spear-Top Steel Fence Panel
A nominal eight-foot-wide galvanized steel fence panel with a five-foot height, pointed spear finials and a gloss-black powder-coated finish. It adds a more substantial perimeter while retaining clear visibility through the pickets.
Select height
Request a Quote
Include this SKU and your preferred quantity in a project request. Palisaro confirms specification, availability and timing before any order is agreed.
Project quotation
Request a Quote
Include this SKU in your project request. Palisaro will confirm the specification, availability, pricing and timing before any order is agreed.
A request is not an order. No payment is taken.
- Nominal size
- 8 ft W × 5 ft H
- Finish
- Gloss black
- Construction
- Galvanized steel
- Installation
- Available by quote
Product overview
The Palisaro 8 ft × 5 ft Spear-Top Steel Fence Panel provides a middle-height option between the four-foot residential profile and the taller six-foot perimeter panel. Pointed finials create a defined upper edge, while the open-picket layout keeps the space beyond the fence visible.
The panel is formed from galvanized tubular steel and finished in gloss-black powder coat. Use it with the confirmed matching Palisaro posts, brackets and caps. Order components for supply only or request a quote for a complete installed fence line.
Key features
- Nominal 8 ft width and 5 ft height
- Spear-point upper profile
- Taller open-picket perimeter without a solid visual barrier
- Galvanized steel construction
- Gloss-black powder-coated finish
- Supply-only and installation options
Technical specifications
Only supplied public values are shown. Unknown weight, coating, hardware and rackability fields remain omitted until confirmed.
- Nominal width
- 8 ft (96 in)
- Manufactured panel width shown in drawing
- 2350 mm (approximately 92.5 in)
- Nominal height
- 5 ft (60 in)
- Manufacturer drawing height
- 1500 mm (approximately 59.1 in)
- Horizontal rails
- Three visible rails
- Rail profile shown in drawing
- 40 × 40 × 1.0 mm
- Vertical pickets shown in drawing
- 19
- Picket profile shown in drawing
- 20 × 20 × 0.8 mm
- Picket centre spacing shown in drawing
- 98.5 mm
- Panel material
- Galvanized steel
- Finish
- Gloss-black powder coat
What's included
- One 8 ft × 5 ft nominal spear-top fence panel
Not included unless selected
- Fence posts
- Post caps
- Concrete or anchoring materials
- Delivery
- Installation labour
Compatibility and applications
- The supplied drawing indicates compatibility with 50 × 50 × 1.2 mm square steel posts; confirm the final post selection before ordering.
- Use brackets and fasteners approved for this panel and post combination.
- Matching-profile pedestrian gate option: 5 ft Spear-Top Gate Kit. Confirm the opening, posts and mechanical fitment before ordering.
Recommended applications
- Residential side and rear boundaries
- Multi-residential properties
- Commercial landscape boundaries
- Equipment and parking-area separation where an open sightline is needed
Installation and delivery
- Use the 2350 mm manufactured panel width plus the confirmed bracket and post allowance when calculating layout.
- Do not assume that 2400 mm in the drawing is the panel width; it represents the drawn post-to-post assembly.
- Confirm whether the panel is rackable before specifying it for sloped ground.
Available as supply only or with professional installation. Installation pricing is project-specific and depends on total footage, access, terrain, post-setting conditions, gate requirements and location.
Pickup and delivery options depend on order size and destination. Enter the project location on the quote request for delivery availability and pricing.
Nominal product names are used for easy selection. Review the actual manufactured dimensions before planning post locations, openings or material quantities.
Site conditions and municipal requirements vary. Confirm property lines, utility locates, permits and applicable fence or pool-enclosure rules before installation.
Technical drawing
Dimensions are subject to normal manufacturing tolerances. Confirm critical opening and layout measurements with Palisaro before setting posts or ordering project-specific quantities.
Frequently asked questions
Need a project-specific answer? Include the site location, approximate footage and gate count in the quote request.
What is the actual width?
The panel itself is approximately 2350 mm, or 92.5 inches, wide. The eight-foot name is nominal and should not be used as the final post-layout measurement.
What is the difference between the five-foot and six-foot versions?
They use the same general spear-top design, but the five-foot model provides a lower perimeter and a less imposing sightline. Confirm all component dimensions by selected height.
Does the panel include posts?
Posts are separate unless the final supplied package states otherwise. Confirm the required number of line, corner, end and gate posts from the fence layout.
Is installation available?
Yes. Palisaro can quote the complete project using the site location, total footage, gate count and ground conditions.
Can I buy the material without installation?
Yes. Palisaro supports supply-only orders as well as complete installation quotes.
How do I estimate how many panels and posts I need?
Provide the total fence-line measurements, corners, ends and gate locations. Panel count is based on the actual manufactured width plus posts and mounting allowances, not nominal panel names alone.
Is delivery available?
Delivery availability and cost depend on destination, order size and unloading requirements. Enter the project location or request a delivery quote.
Can I request a different colour?
Gloss black is the standard finish. Other colour or refinishing options, when available, require a custom quote and may add lead time.
Are these products suitable for a pool enclosure?
No blanket compliance claim is made. Pool-enclosure rules, allowable spacing, fence height and gate hardware vary by municipality. The final system must be reviewed for the project location.
Do I need a permit?
Permit and fence requirements vary by municipality, property type, height and use. The property owner or project contractor is responsible for confirming applicable requirements before installation.
